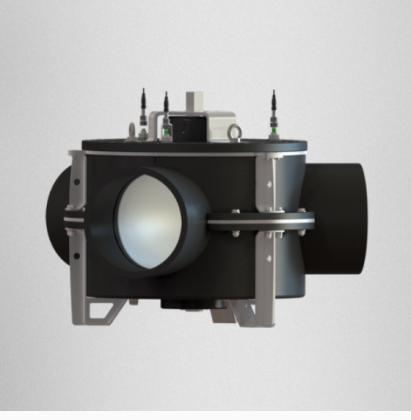

The WaStop Inline check valve installs in stormwater systems and outlets, providing immediate protection against flooding and backflow. Its unique, simple, and effective design also prevents unwanted odour, especially at outlets in tidal environments. The standard variant is supplied with an EPDM gasket and mounting tabs. Technical specification: /* Container for specs + image */ .tech-container { display: flex; gap: 20px; align-items: flex-start; } /* Specification table column */ .tech-spec-col { width: 40%; } /* Image column */ .tech-image-col { width: 60%; text-align: center; } .tech-image-col img { max-width: 100%; height: auto; display: block; margin: 0 auto; } /* Mobile: stack table and image */ @media (max-width: 768px) { .tech-container { flex-direction: column; } .tech-spec-col, .tech-image-col { width: 100%; } .tech-image-col { margin-top: 12px; } } Name: WaStop 1185 Flange NPS: NPS 48 DN: DN 1200 Bolt Circle Diameter (BCD): 1380mm Ø Bolt Holes (ØB): 17mm Dimension (D): 1185mm Max. Flow Volume: 5654 l/s Max. Flow Velocity: 5 m/s Max. ID Host Pipe: 1230mm Min. ID Host Pipe: 1193mm # Bolt holes (#B): 14 Outer Ø (OD): 1185mm Valve body length (L): 2250mm Weight: 390kg
